CarBit

OBD 2 Engine ECU Diagnostics Tool with Wi-Fi/Bluetooth ELM327 Adapter

Unlock the full potential of your vehicle's diagnostics with our advanced OBD 2 engine ECU diagnostics tool, compatible with Wi-Fi and Bluetooth ELM327 adapters. This powerful application is designed to help you monitor and manage your car's performance with ease and precision.

Key Features:

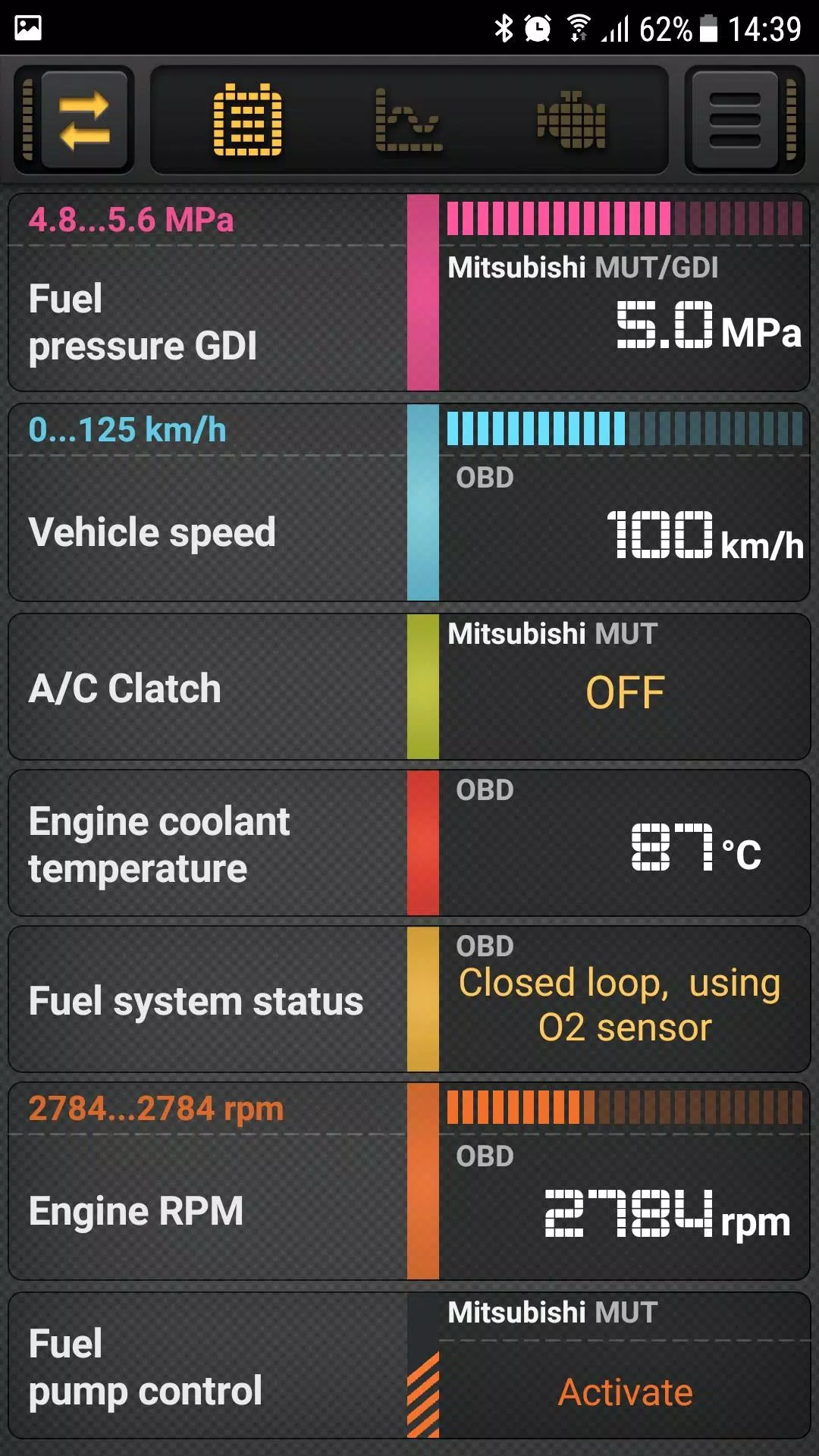

• Real-Time Data Display: View data from various electronic vehicle blocks in real-time, with the ability to display and save graphical representations for later analysis.
• Fault Code Management: Effortlessly show and reset engine fault codes/DTC trouble codes, helping you diagnose and address issues promptly.
• Customizable Alarms: Set minimum and maximum values for each sensor/PID, triggering an alarm when these thresholds are reached, ensuring you stay informed about your vehicle's health.
• Broad Compatibility: Supports both Bluetooth and Wi-Fi ELM327 OBD adapters. For optimal performance, we recommend using adapters version 1.5, as there have been numerous complaints about the reliability of version 2.1.

Important Note:

ELM327 chips are compatible only with vehicles equipped with OBD2 support:

• USA: Cars manufactured since 1996
• Europe: Gasoline cars since 2001, Diesel cars since 2003
• Japan: Cars manufactured since approximately 2000

Extended Support for Various Car Brands:

In addition to standard OBDII parameters, our tool supports special parameters tailored for different car brands. Here are some of the currently supported options:

• BMW: DIESEL, E91+AT
• BYD: MT20U, ABS
• Chery: MT20U, MT20U2, ActecoME797
• Chrysler/Dodge: DIESEL, AT
• Citroen: C4, C5, Sagem2000, CAN/AT6, EDC16C3, MEV17.4.2
• Daewoo: SiriusD42
• Fiat: IAW49F, IAW5SF
• Ford: ECU, PWM/AT, PWM/ABS, CAN/DIESEL, CAN/AT, CAN/TPMS, CAN/ABS
• Geely: MT20U, MT20U2, M797
• GM/Chevrolet/Pontiac: ECU, AT, ABS, SiriusD42
• GreatWall: MT20U2, EOBD, CAN/4D20
• Honda: Fit, Accord, CRV/DIESEL, Insight
• Jeep: ECU, DIESEL, AT, TPMS
• KIA, Hyundai: Approximately 15 PIDs for each model including ATF Temperature, Knock detected, etc.
• Land Rover: RANGE/3.6L, DISC4/3.0L, DISC3/TD6, FL2/TD4
• Lifan: MT20U, MT20U2, ActecoME797, ME1788, ABS
• Mazda: ECU, AT, ABS, CAN/TPMS, CAN/SWA
• Mercedes: W203/CDI, W169/CVT, W168
• Mitsubishi: CAN/ECU, CAN/CVT, CAN/SS4II, CAN/AWC, MUT/OBD, MUT/GDI (Note: Mitsubishi vehicles before ~2000 do not support OBD and cannot work with ELM327)
• Nissan: CAN/ECU, CAN/CVT, CAN/AWD, CAN/METER, CONSULT2
• Opel: ECU, AT, ABS, X18XE, Z16XE, Y17DT, CDTI1.6L, CDTI1.3L
• Peugeot: MEV17.4.2, EDC16C3, ME744, AL4/CAN, AL4/KWP
• Renault: CAN/ECU, CAN/DIESEL, KWP/DIESEL, Sagem2000, KWP/EMS3132
• Skoda: CAN UDS TSI/TFSI
• SsangYong: KWP/ECU, KWP/AT5, D20DT, CAN/D20DTF, CAN/DSI6
• Subaru: ECU, ECU/DIESEL, SSM2, SSM2/DIESEL, SSM2/AT, KWP/ABS
• Suzuki: CAN/ECU, KWP/ECU
• Toyota: CAN/ECU, KWP/ECU, Prius10, Prius20, Prius30/Alpha, Prius30/AC
• VAG: TDI/2.5L, CAN UDS TSI/TFSI
• Volvo: D5/P3
• VAZ: Yanvar 7.2, Itelma VS5.1 R83, Itelma M73, Itelma M74, KWP/CAN, AT/JATCO, AMT/ZF, Vesta/Largus K4M, H4M
• GAZ: MIKAS10.3/11.3, MIKAS11/E2
• ZAZ: MIKAS10.3/11.3, MR140
• UAZ: MIKAS10.3/11.3, MIKAS11/E2, M86CAN

The list of supported models and parameters is continuously updated. Not all PIDs listed for a specific car brand may be supported by your vehicle. You can customize the types of PIDs you need in the "Settings / PID types" section.

For certain car brands (currently some Mitsubishi models), you can control various systems such as turning on the cooling fan or gasoline pump. To read MUT parameters and control actuators on Mitsubishi CAN-bus models (e.g., Montero/Pajero IV, Outlander 2), create a profile with the ISO 9141-2 protocol, while leaving the remaining profiles (for reading CAN parameters) with the ISO 15765-4 CAN (11bit 500K) or automatic protocol. Note that not all Mitsubishi CAN-bus models support ISO 9141-2 connectivity.

Our tool offers ample opportunities for creating your own parameters, enhancing your diagnostic capabilities.

What's New in Version 3.5.9

Last updated on Sep 30, 2024

• Minor bug fixes and improvements. Install or update to the newest version to experience these enhancements!
